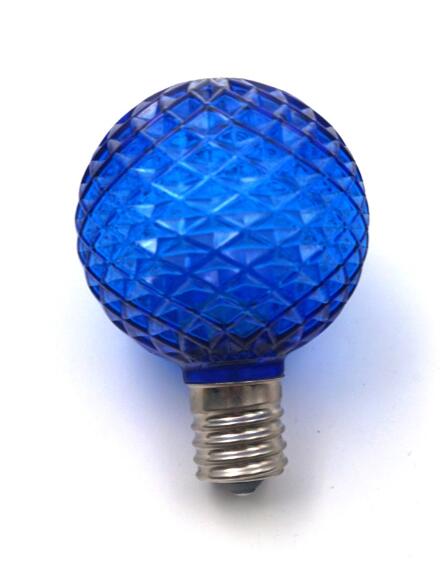

  • Outdoor using G40 E17 LED bulb Type of the products:BAG40
    Zoom

Introduction
Parameters
Specification

Emitting Color
Totality Luminous Intensity Unit:LM
Single LED Intensity
Unit: mcd
Dominant Wavelength Unit: nm
Color Temperature
Unit: K
Red
≥5.5
≥600
623±3NM
Yellow
≥4.5
≥600
590±3NM
Blue
≥2.5
≥600
465±3NM
Green
≥12
≥1200
530±5NM
WHITE
≥17
≥2000
485±5NM
6000-6500K
Amber
≥4
≥400
603±2NM
Purple
≥4.5
≥600
400±2NM
Pink
≥7.5
≥600
Sun white
≥15
≥1000
580±5NM
2300-2500K
Worm white
≥16
≥1000
575±5NM
2800-3200K
Test condition
Test Voltage：120V/AC
Current：17±1mA
 Power:0.35W±0.02W

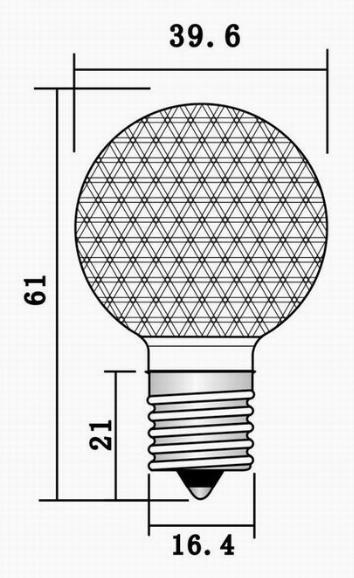

 Product Display&Structure








Parameters




Specification
Emitting Color
Totality Luminous Intensity Unit:LM
Single LED Intensity
Unit: mcd
Dominant Wavelength Unit: nm
Color Temperature
Unit: K
Red
≥5.5
≥600
623±3NM
Yellow
≥4.5
≥600
590±3NM
Blue
≥2.5
≥600
465±3NM
Green
≥12
≥1200
530±5NM
WHITE
≥17
≥2000
485±5NM
6000-6500K
Amber
≥4
≥400
603±2NM
Purple
≥4.5
≥600
400±2NM
Pink
≥7.5
≥600
Sun white
≥15
≥1000
580±5NM
2300-2500K
Worm white
≥16
≥1000
575±5NM
2800-3200K
Test condition
Test Voltage：120V/AC
Current：17±1mA
 Power:0.35W±0.02W
